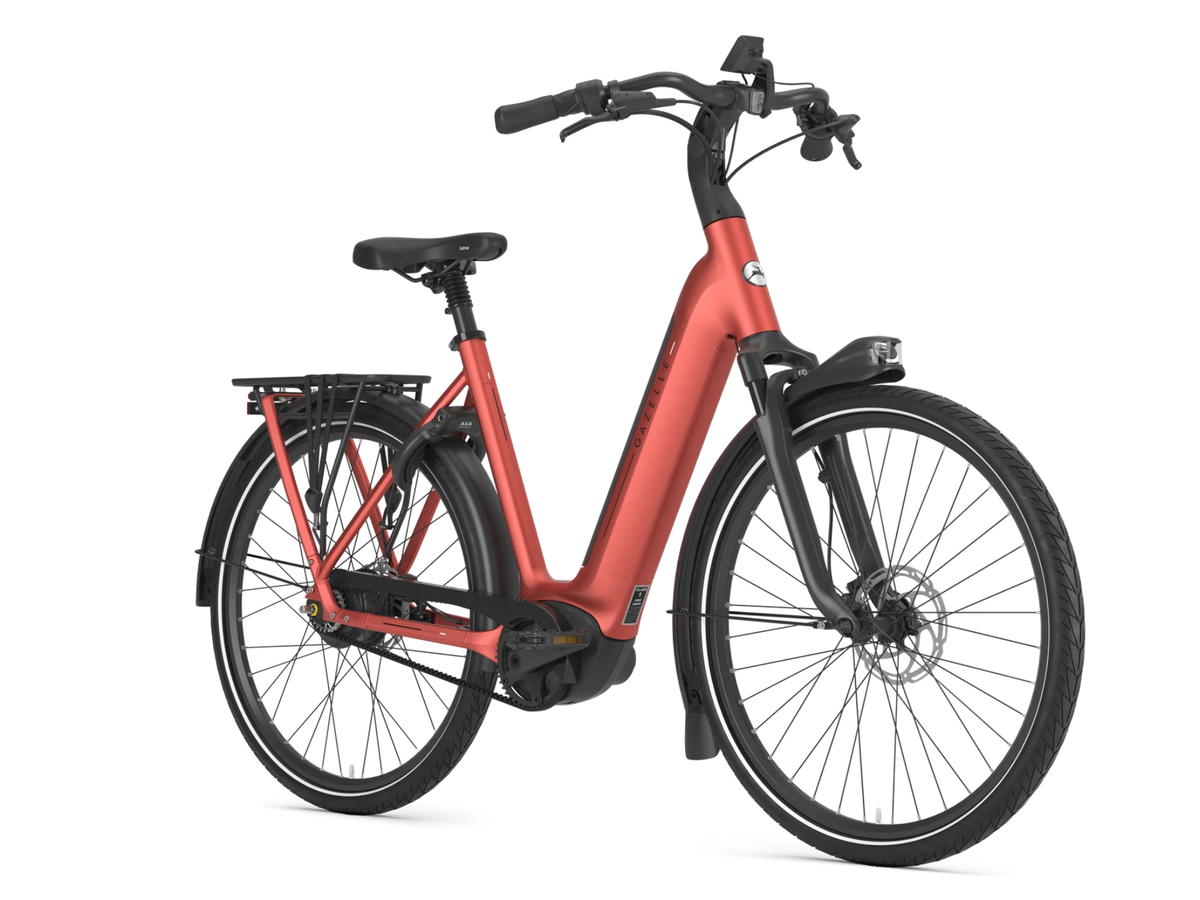

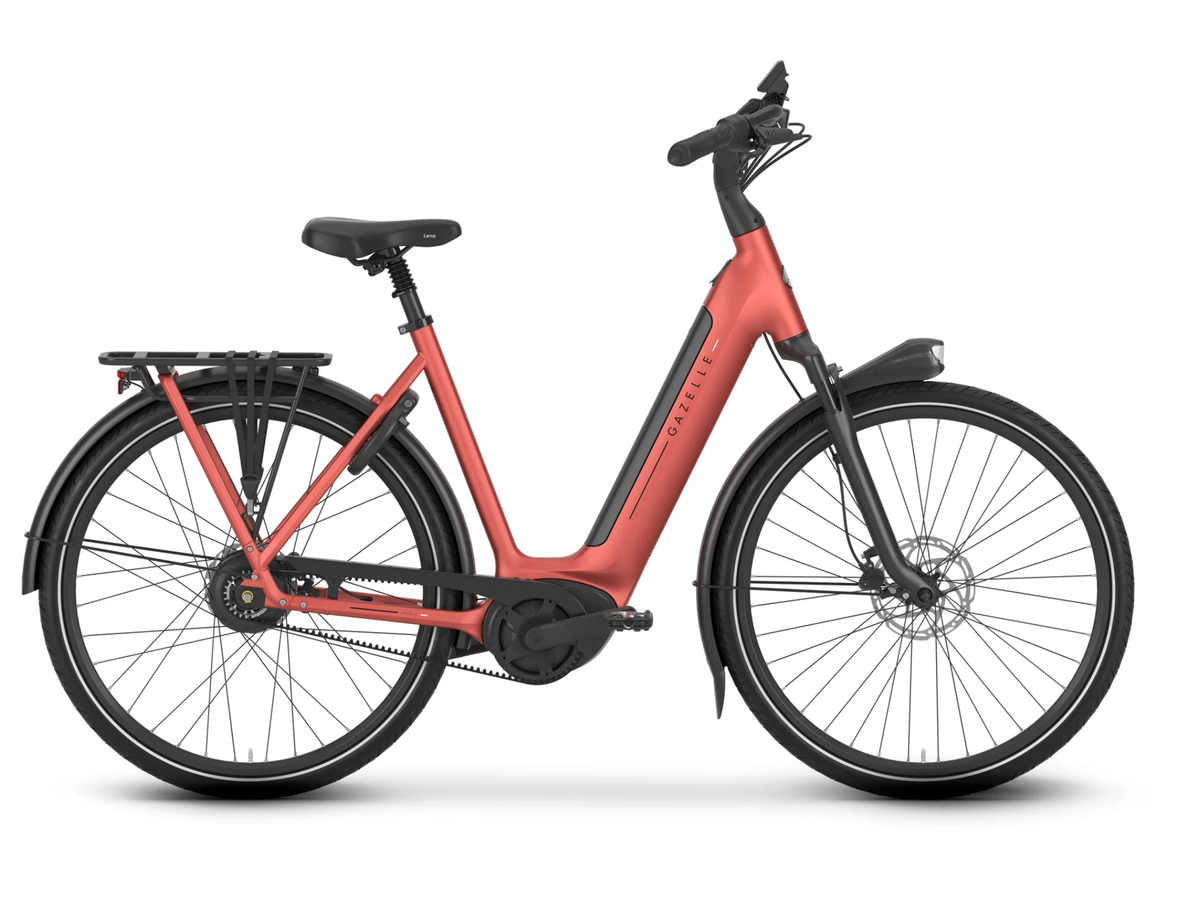

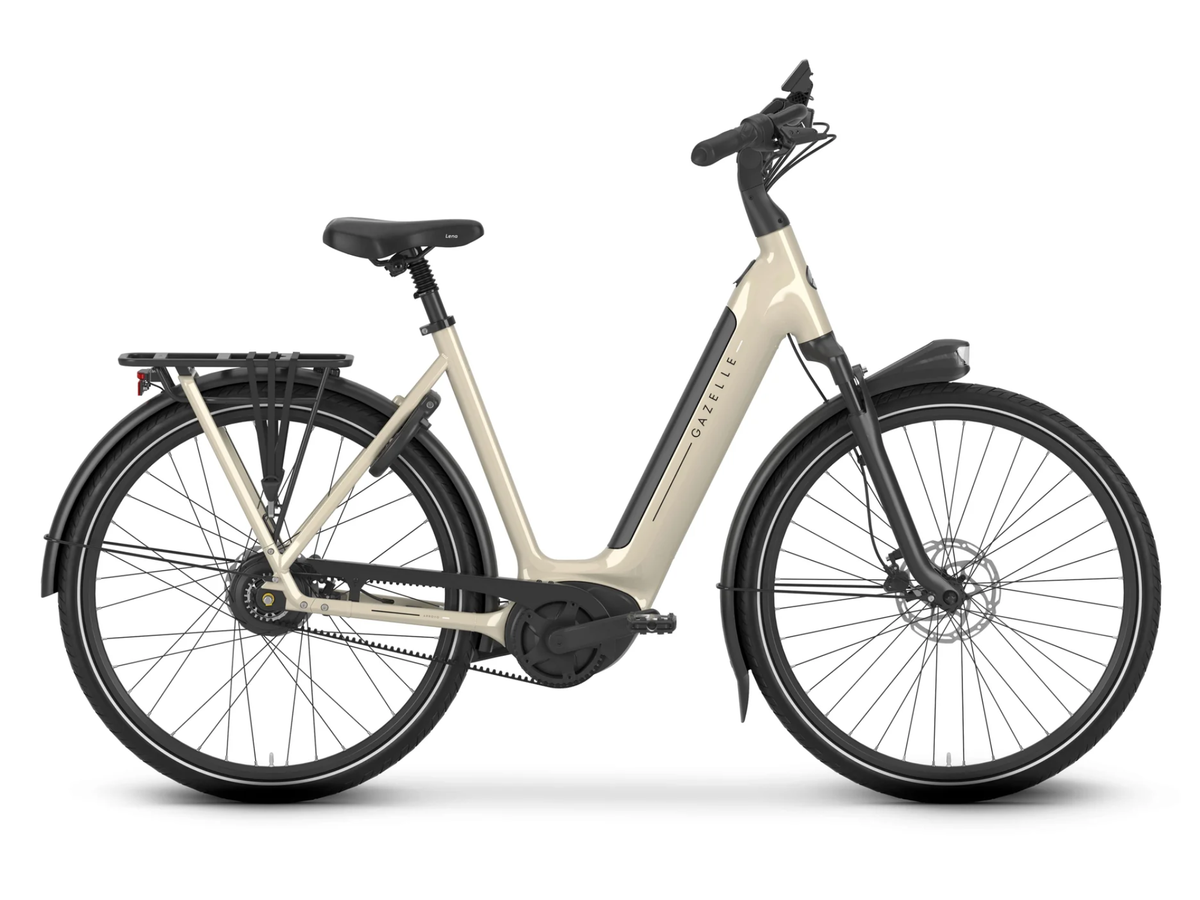

The Gazelle Arroyo C380 2026 with Bosch Smart System is a premium comfort e-bike built for smooth, low-maintenance urban and leisure riding. Equipped with Bosch Performance Line motor (75 Nm) for powerful, natural-feeling support, 540Wh integrated battery with smart energy management and easy removal via frame lock and Enviolo stepless hub + Gates Carbon Belt Drive for silent, grease-free shifting.
Specs
Motor: Bosch Smart System Performance Line
Torque:75 Nm
Riding Mode: Torque Sensor, 5 Levels of Assist: Eco, Tour, Sport, Auto & Turbo
Display: Bosch Kiox 300
App & Tech Features:eBike Flow App offers eBike Lock, Ai Navigation, Custom Riding Mode, and Smart Walk Assist. Add a ConnectModule GPS to get Flow+ with eBike Alarm and Tracking.
Battery: Bosch Intube 540Wh 36V15A
Battery Weight: 6.6 lbs (3 kgs)
Charger:Bosch Standard Charger 4A
Charging Time: 50%: 2.5 hours, 100%: 5 hours
Speed: 32kmh/20mph
Range: Up to 150 kms/ 93 miles
Parts Warranty: Bosch: 2 years, Frame: 10 years, Fork & Paint: 5 years, Other parts, battery & display: 2 years
BIKE
Frame: Stable, lightweight hydro-formed aluminium frame with 68.5° headset angle and 69.5° seat tube angle for relaxed and comfortable riding. This is a low-step and spacious frame, single tube and lovely integrated cables
Sizes: S 46 cm (4'10"-5'6"), M 53 cm (5'6"-5'10"), L 57 cm (5'10"-6'4")
Brakes: Tektro HD-T280, 180 mm|160 mm
Fork: Telescope, spiral spring
Rear Shock:
Tires: Schwalbe Energizer Active Plus 50-622
Weight: 60.8 lbs (27.6 kgs)
Load: 330.8 lbs (150 kgs)
Included Accessories: Fenders, rack, lights, kickstand
DRIVETRAIN
Gears: Enviolo Trekking hub
Shifters: Enviolo stepless twist shifter
Crank:
Rear Cogs:
Bottom Bracket:
Chain: Gates Carbon Belt Drive
COCKPIT
Handlebar:
Stem: Adjustable stem
Headset:
Grips: Gazelle Aero Leather, luxury leather handlebar grips for a sophisticated feel and extra comfort
