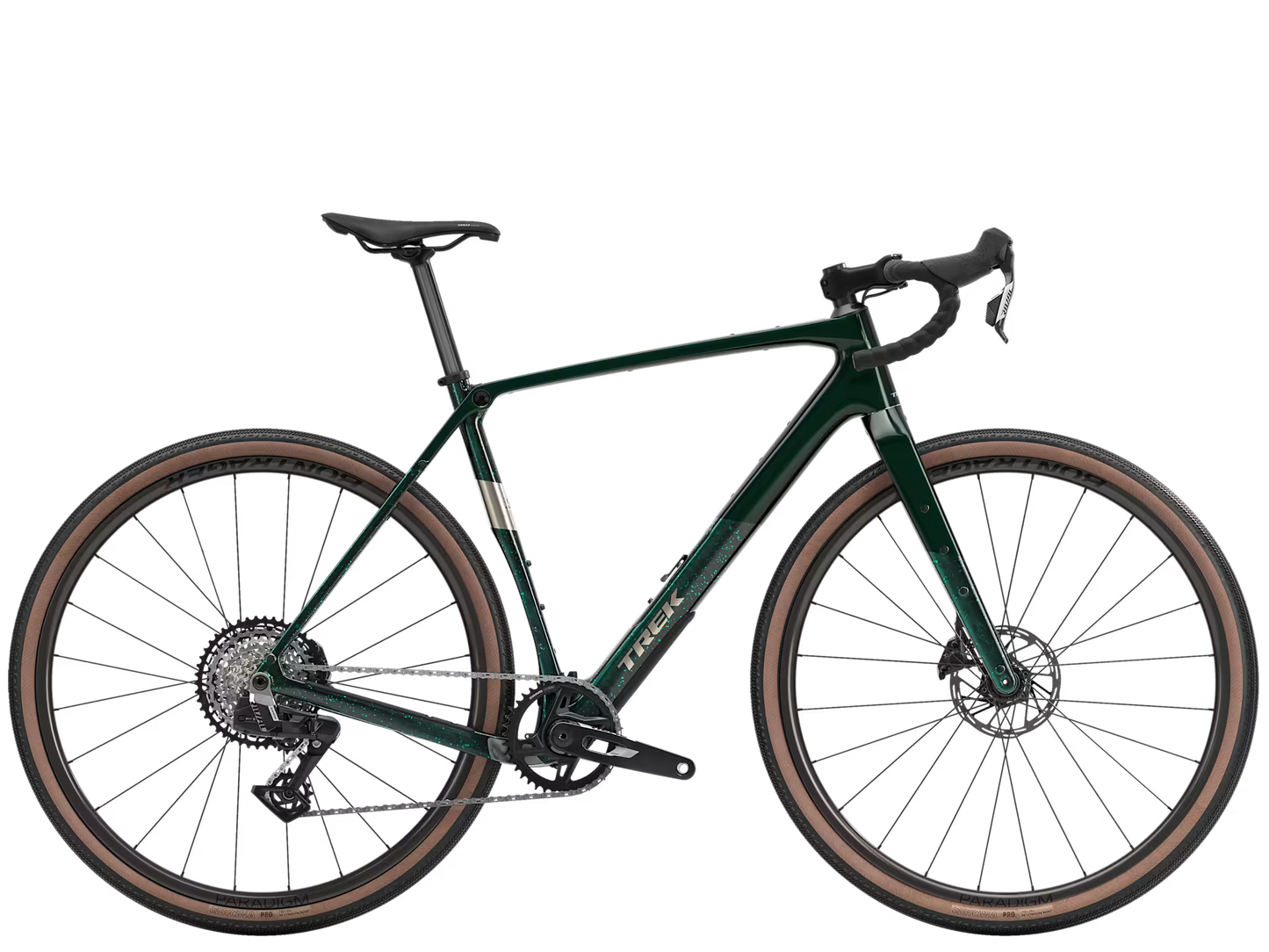

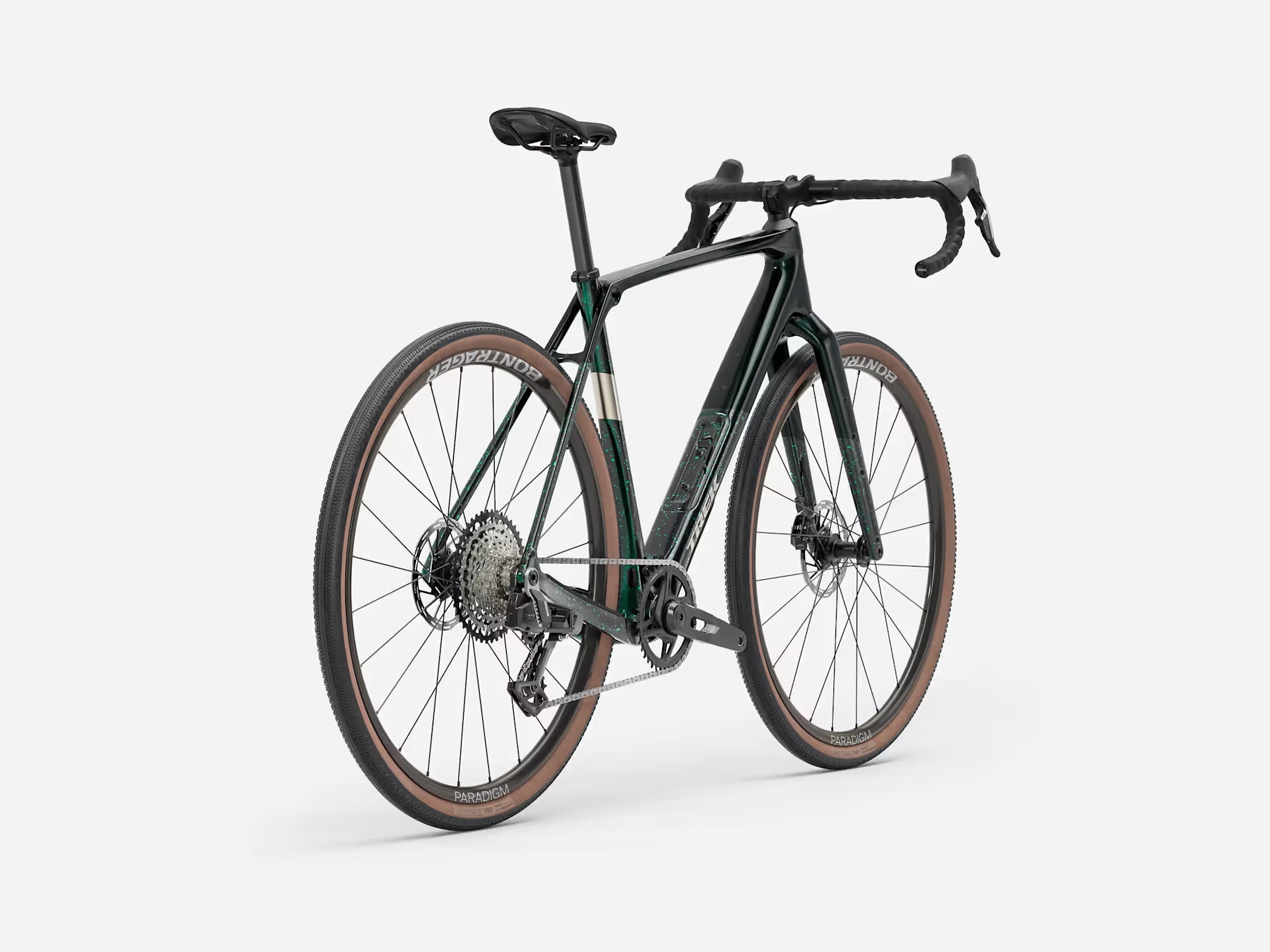

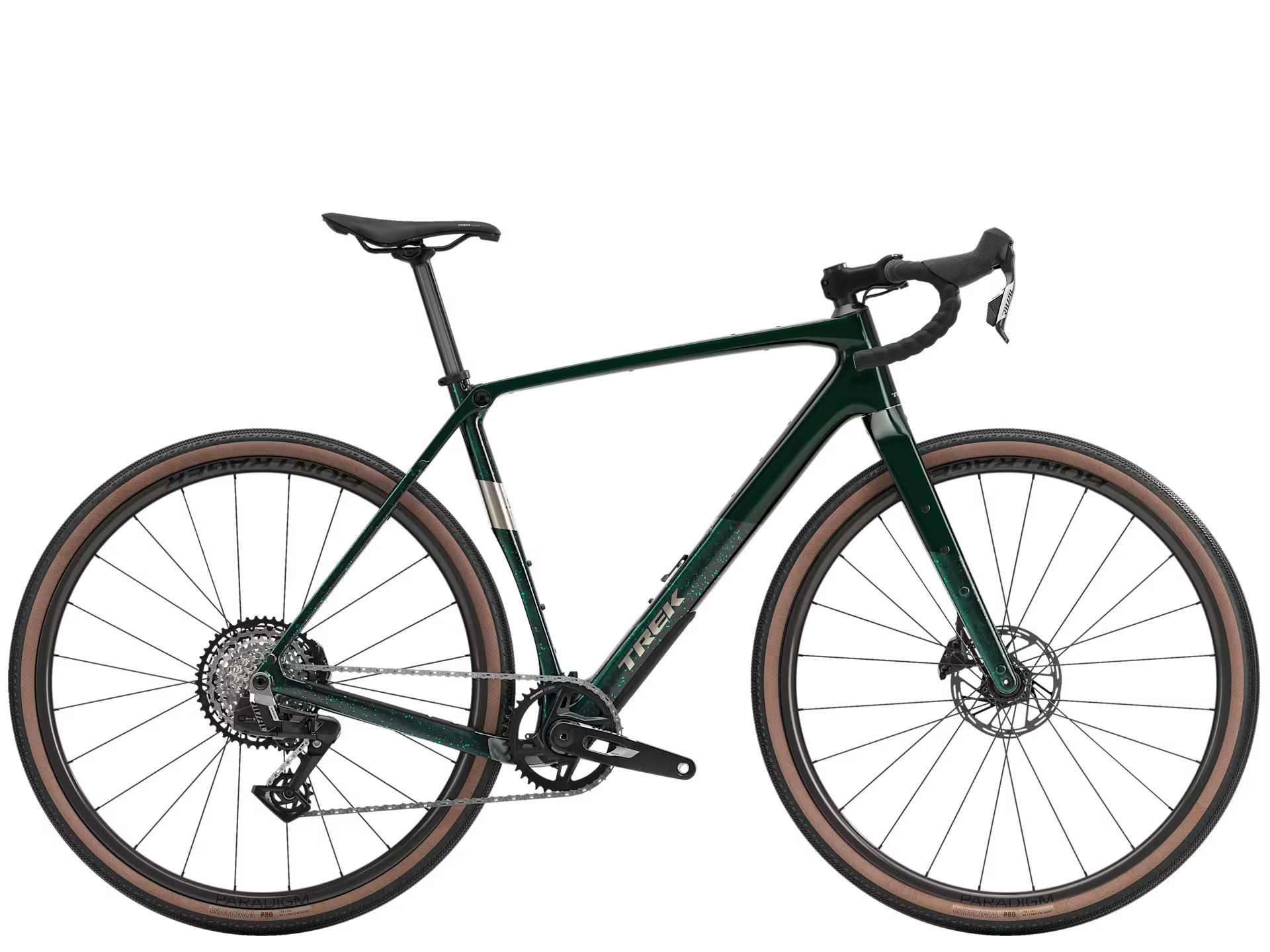

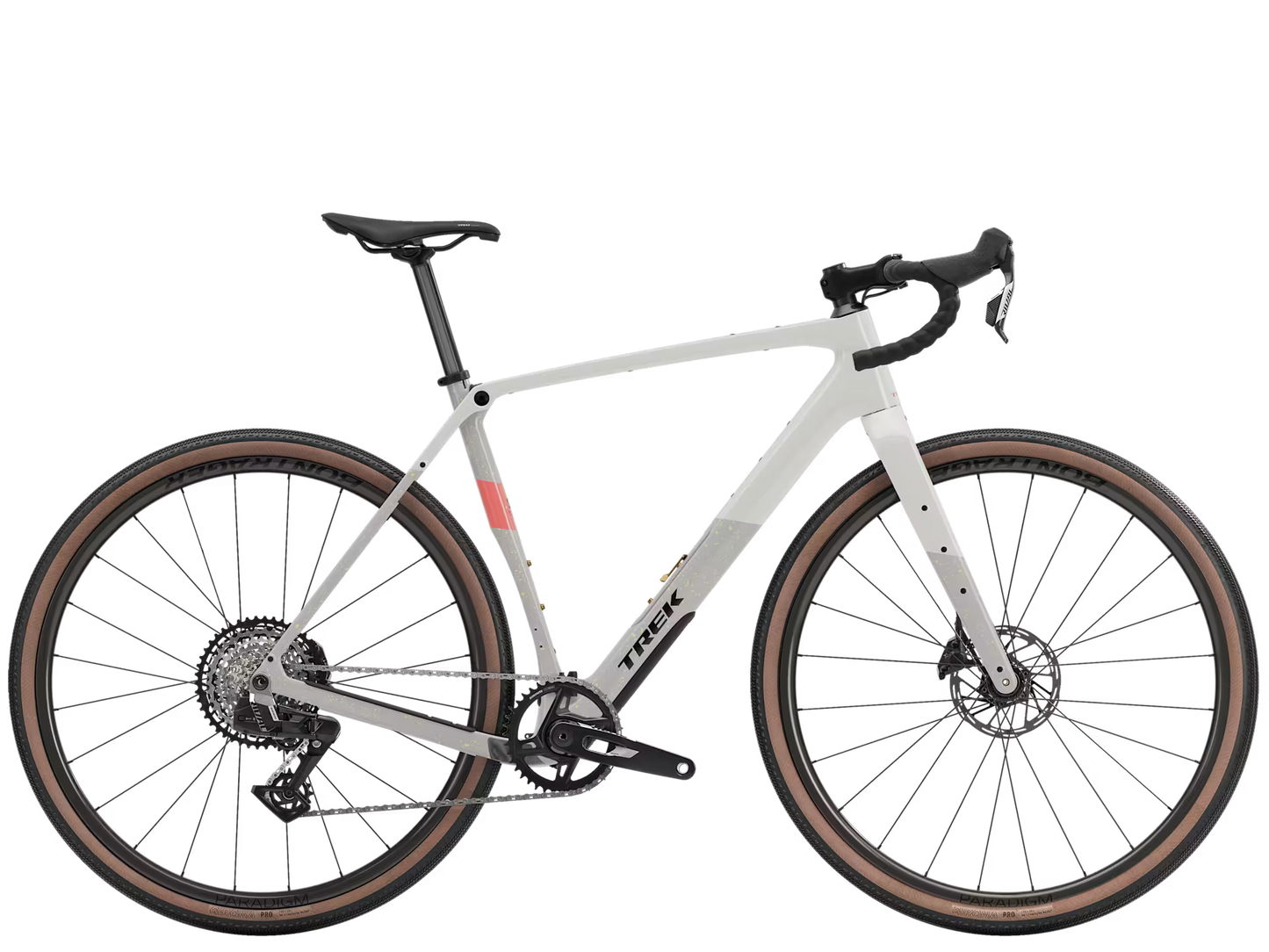

TREK Checkpoint SL 6 AXS Gen 3

Name: TREK Checkpoint SL 6 AXS Gen 3
Brand: TREK
SKU: 5334719
Price: 5199.99 CAD
Availability: InStock

$5,199.99 CAD

Sale Sold out

Shipping calculated at checkout.

Color Dark Green/Ivy Smoke Splatter Era White/Buff Beige

Size XS SM MD ML LG XL

Product variants

Quantity

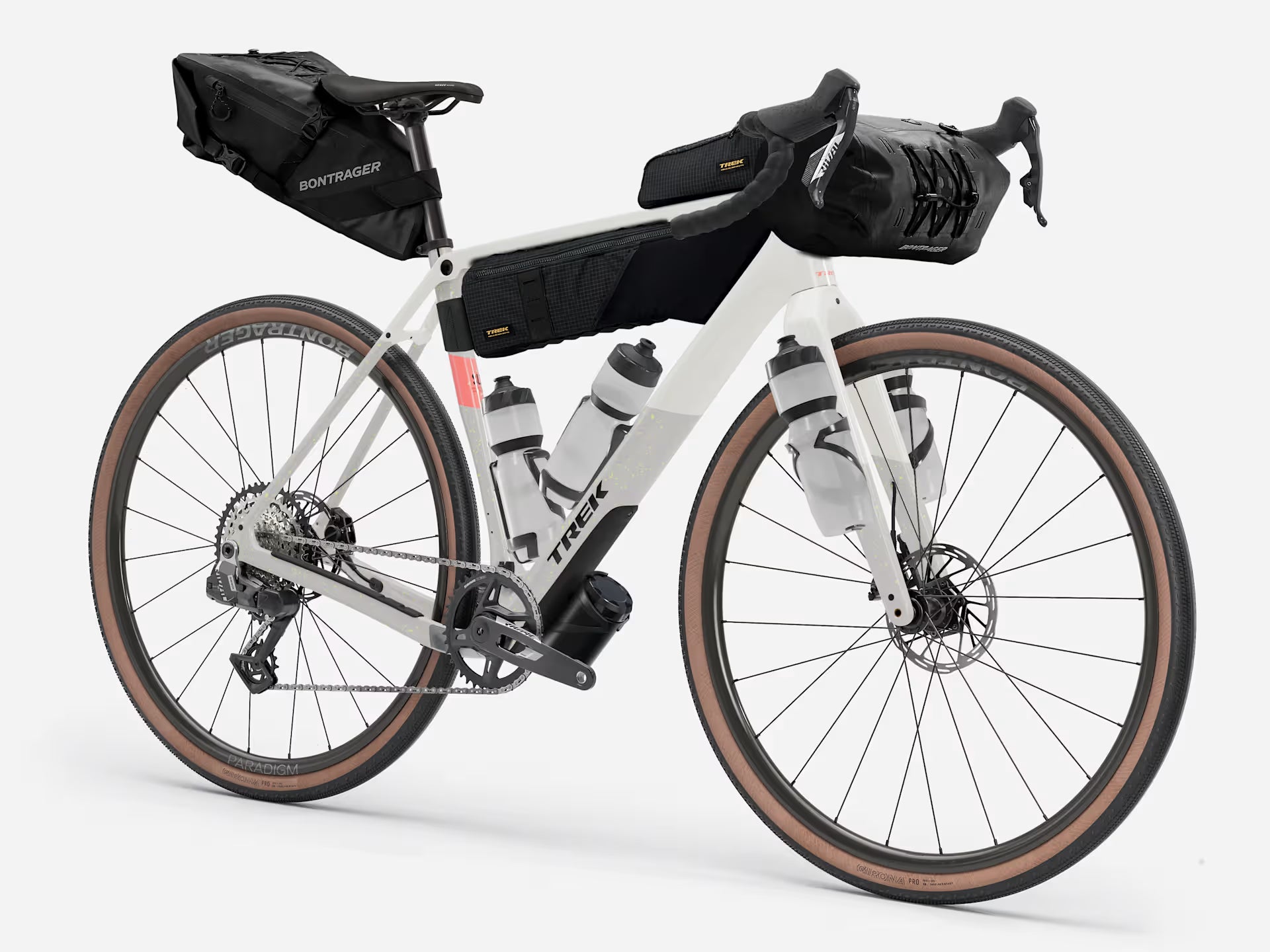

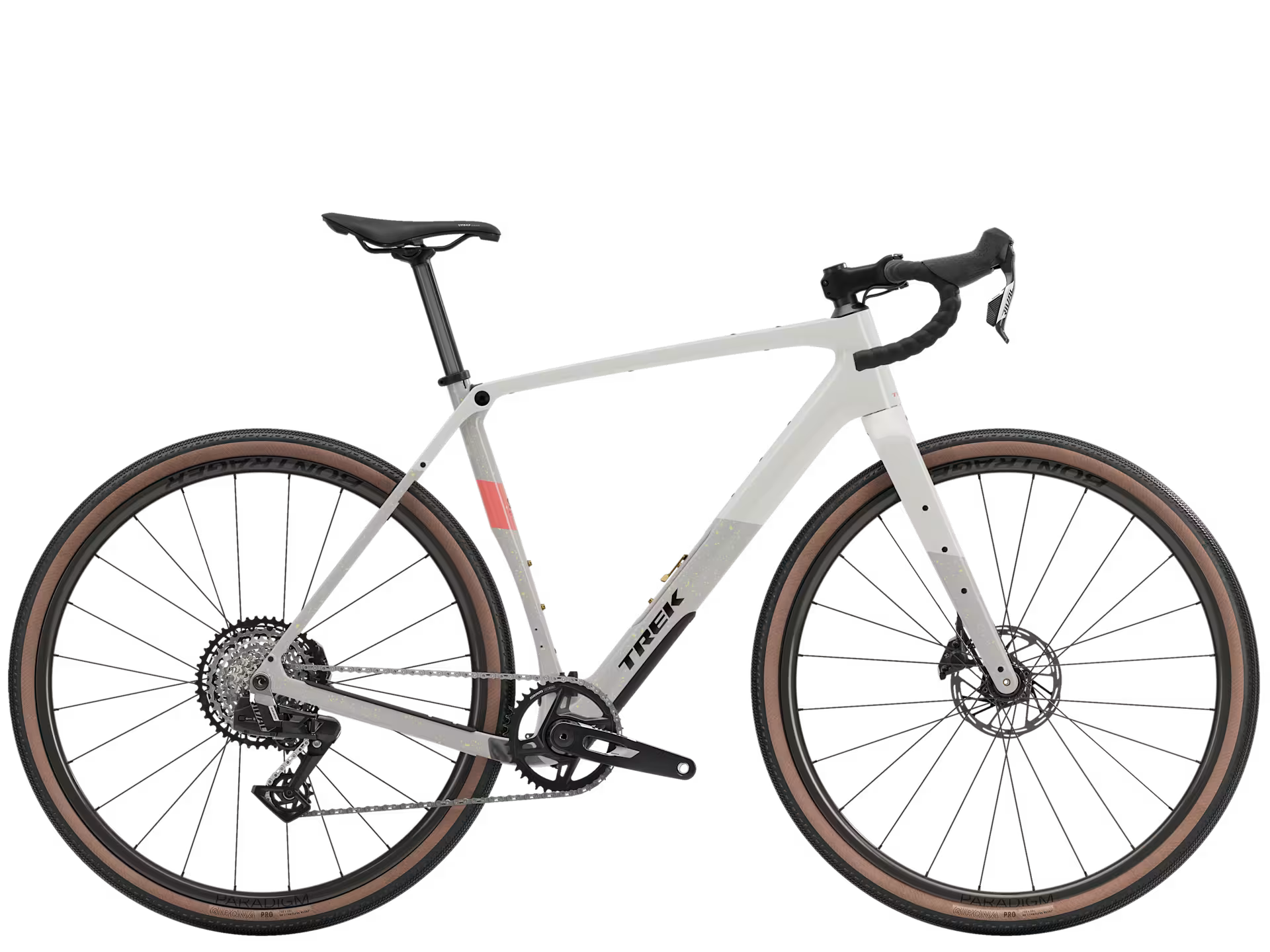

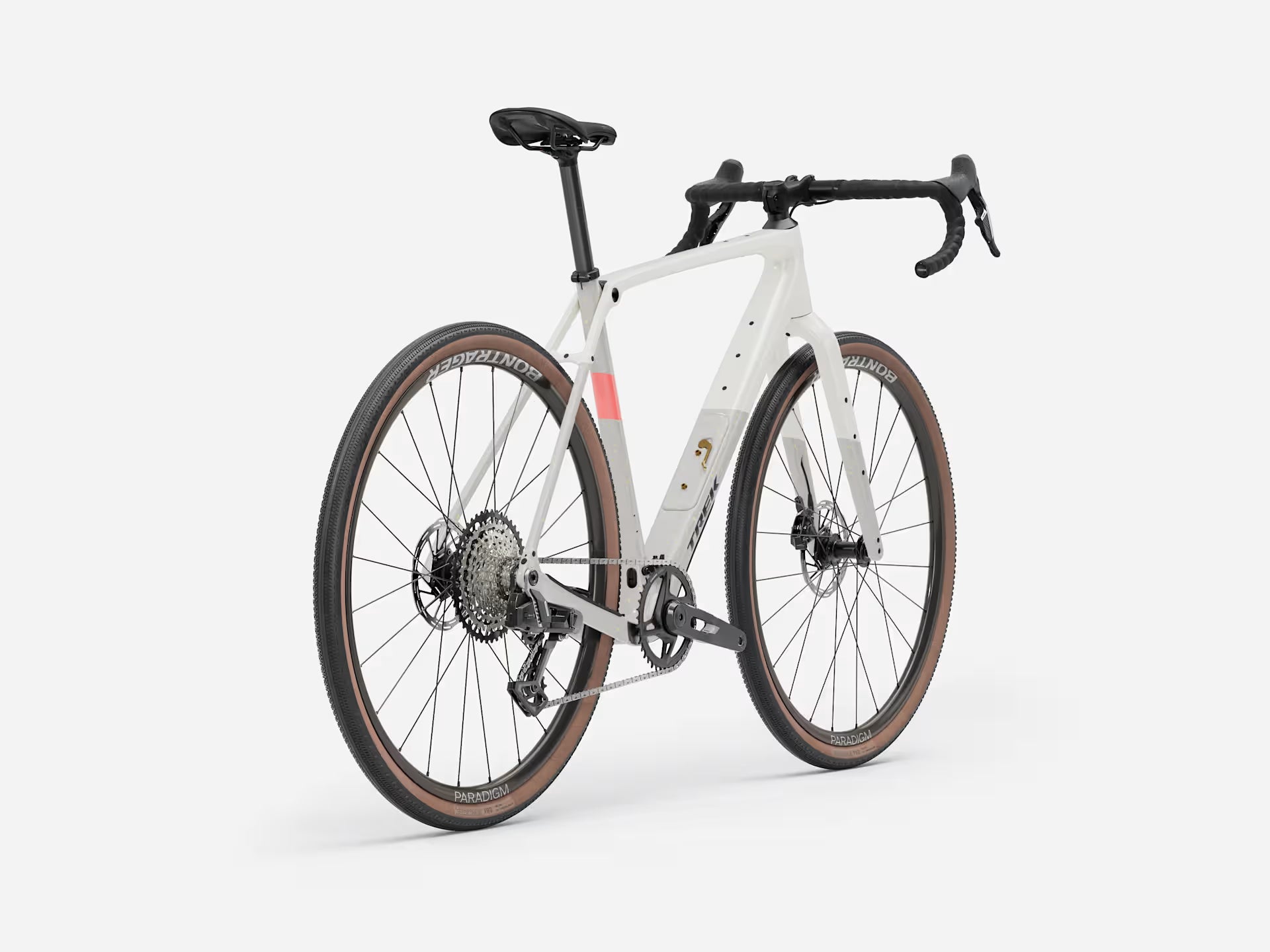

Checkpoint SL 6 AXS Gen 3 is a carbon gravel bike built for far-out adventures. Its lightweight frame features comfort-focused Gravel Endurance geometry, clearance for 50mm tires (as measured), and plenty of mounts for gear and accessories. IsoSpeed technology helps soak up vibrations from rough roads, so you can float over chatter and potholes. It’s finished with a SRAM Rival XPLR AXS E1 wireless 1x13 drivetrain that’s ready to explore.

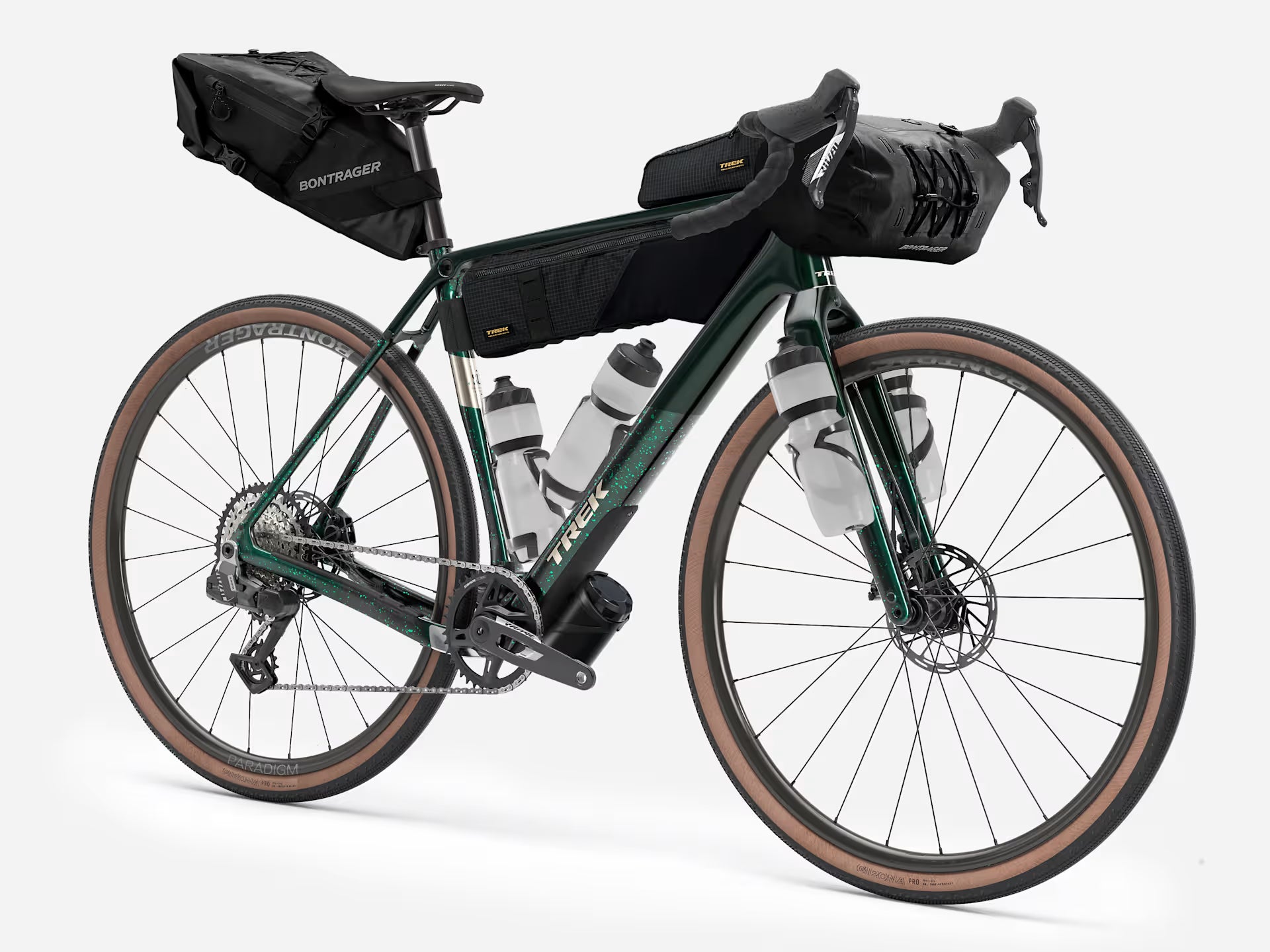

Frame: 500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden fender mounts, rack mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, flat mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12mm chamfered thru axle

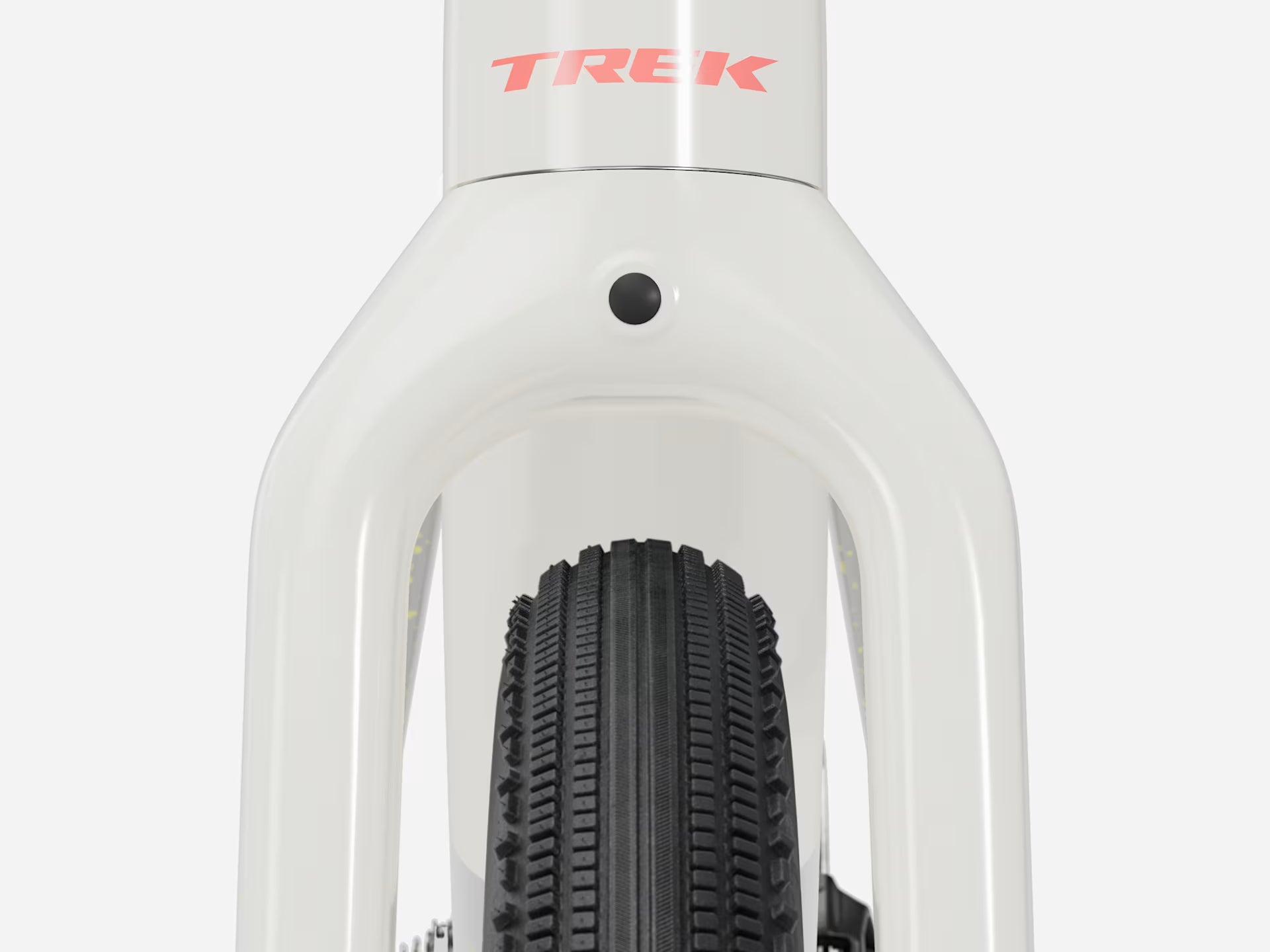

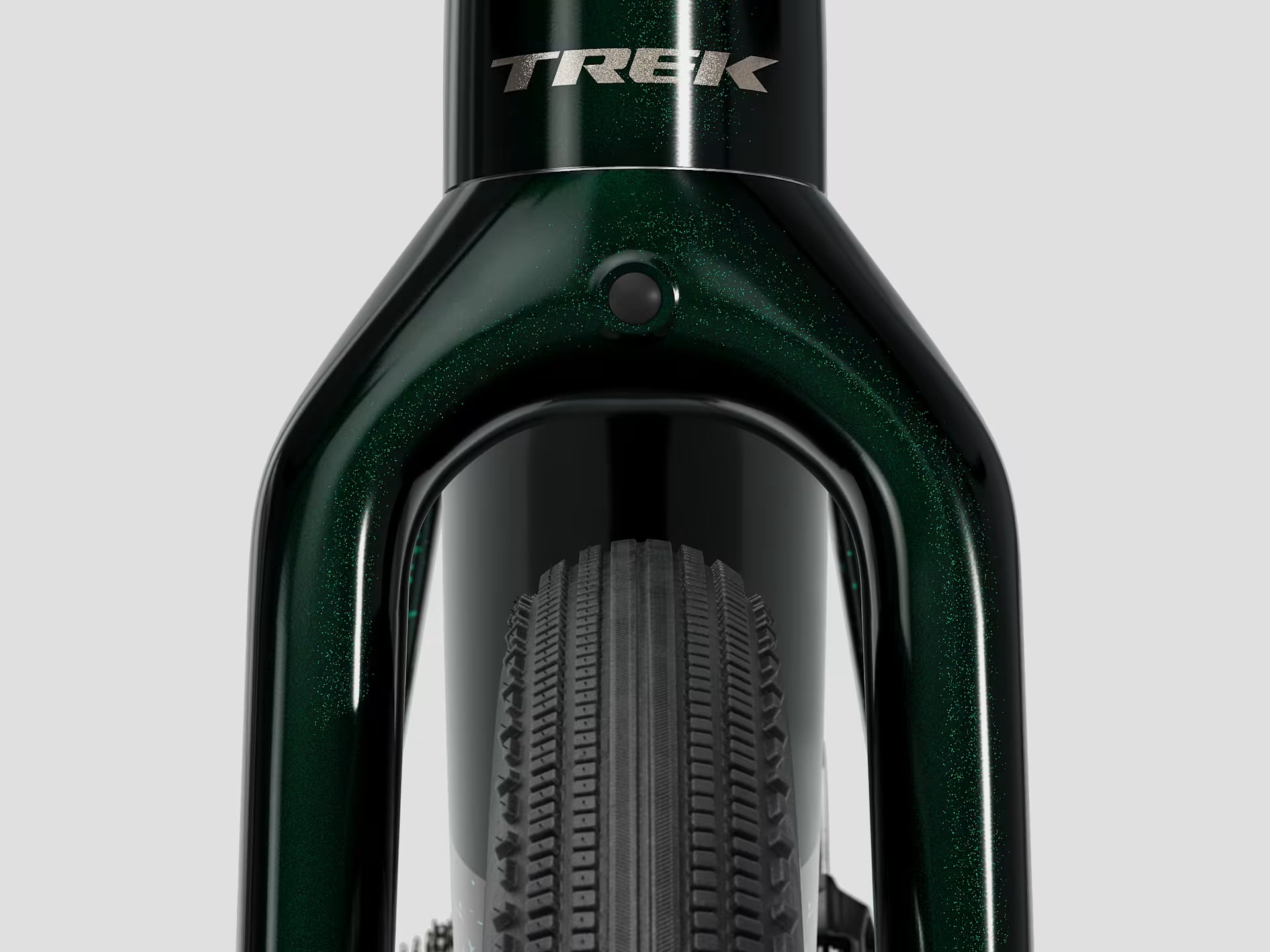

Fork: Trek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle

Weight: ML - 9.49 kg / 20.93 lbs (with TLR sealant, no tubes)
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

Battery: SRAM AXS battery pack (with charger)

*Shifter: Size: XS, S, M, ML, L, XL

SRAM Rival AXS E1

Size: XS, S, M, ML, L, XL

SRAM Rival AXS E1, 13 speed

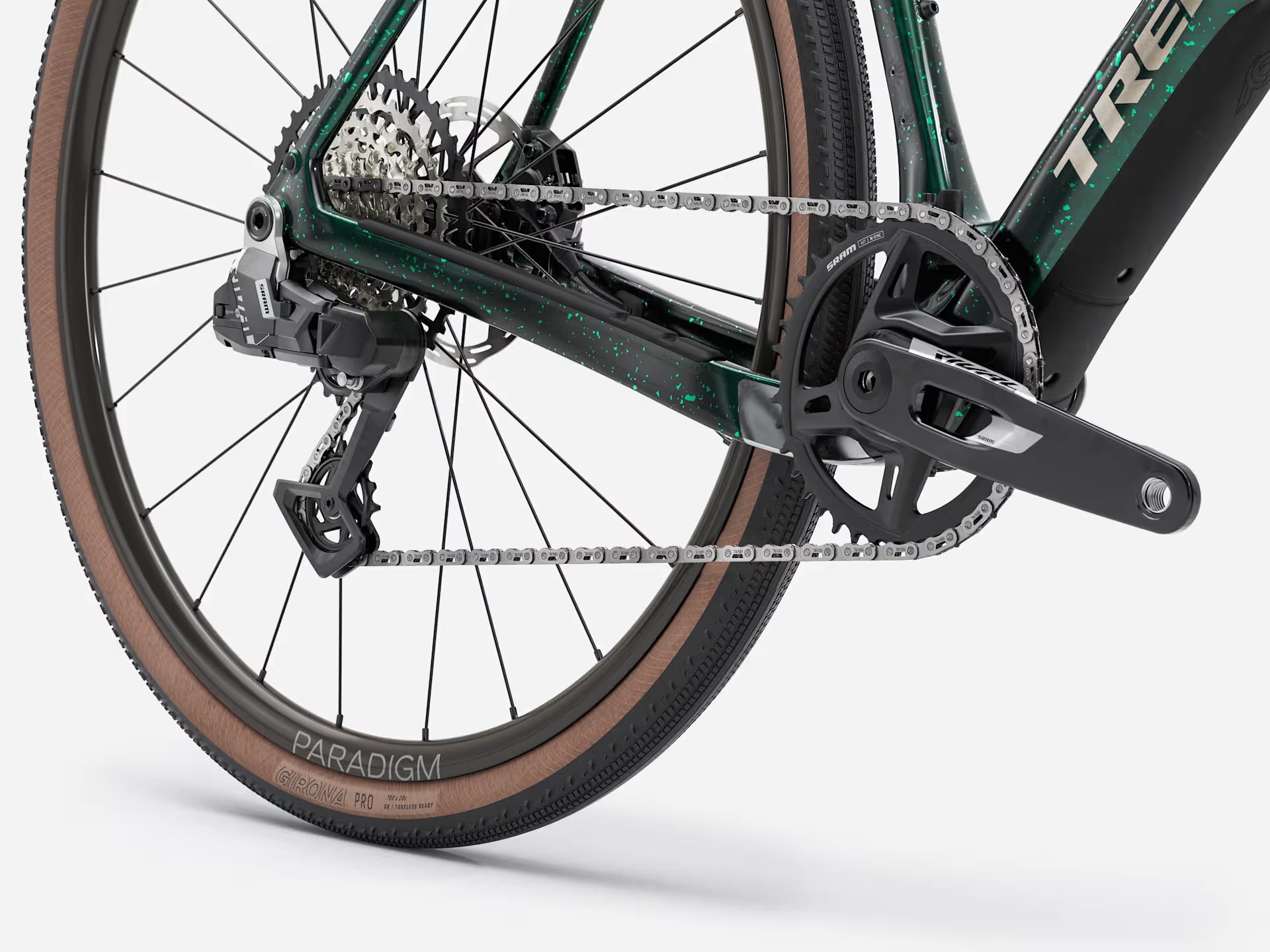

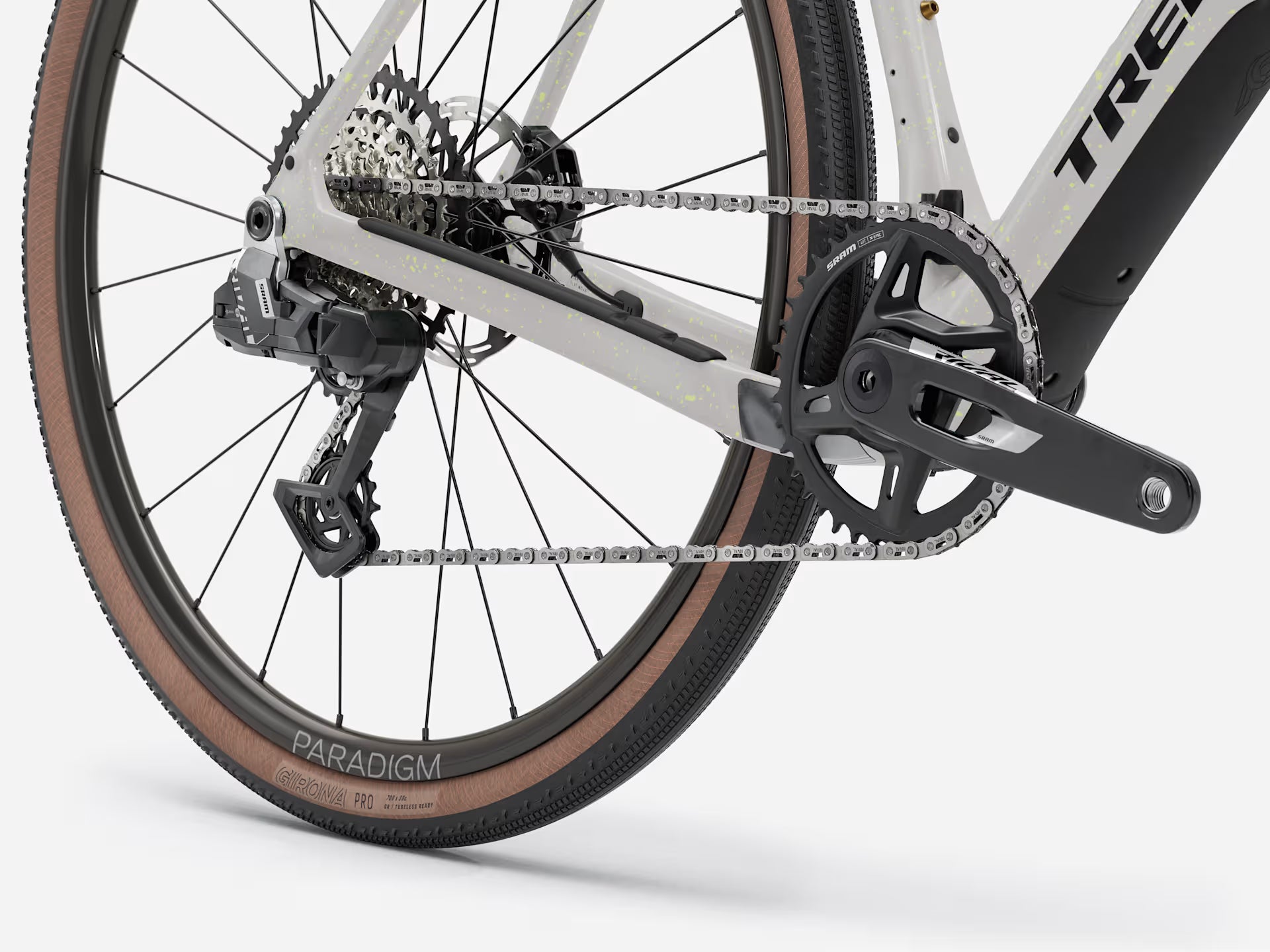

Rear derailleur: SRAM Rival XPLR AXS, 46T max cog
*Crank: Size: XS, S

SRAM Rival XPLR, 40T, DUB Wide, 165mm length

Size: M

SRAM Rival XPLR, 40T, DUB Wide, 170mm length

Size: ML, L

SRAM Rival XPLR, 40T, DUB Wide, 172.5mm length

Size: XL

SRAM Rival XPLR, 40T, DUB Wide, 175mm length
Bottom bracket: SRAM DUB Wide, T47 threaded, internal bearing
Cassette: Sram Rival XPLR XG-1351, 10-46, 13 speed
Chain: SRAM Rival E1, 12/13 speed
Max chainring size: 1x:44 2x: 46/30

Wheel front: Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle
Wheel rear: Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, SRAM XD-R 12-speed freehub, 142x12 thru axle
Skewer front: Bontrager Switch chamfered thru axle
Skewer rear: Bontrager Switch chamfered thru axle, removable lever
Tire: Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm
Tire part: Bontrager TLR sealant, 180 ml/6 oz
Rim strip: Bontrager TLR
Max tire size: 50mm without fenders, 42mm with fenders (as measured, see manual for details)

Saddle: Verse Short Comp, steel rails, 145mm width
Seatpost: Bontrager carbon, 27.2mm, 8mm offset, 330mm length

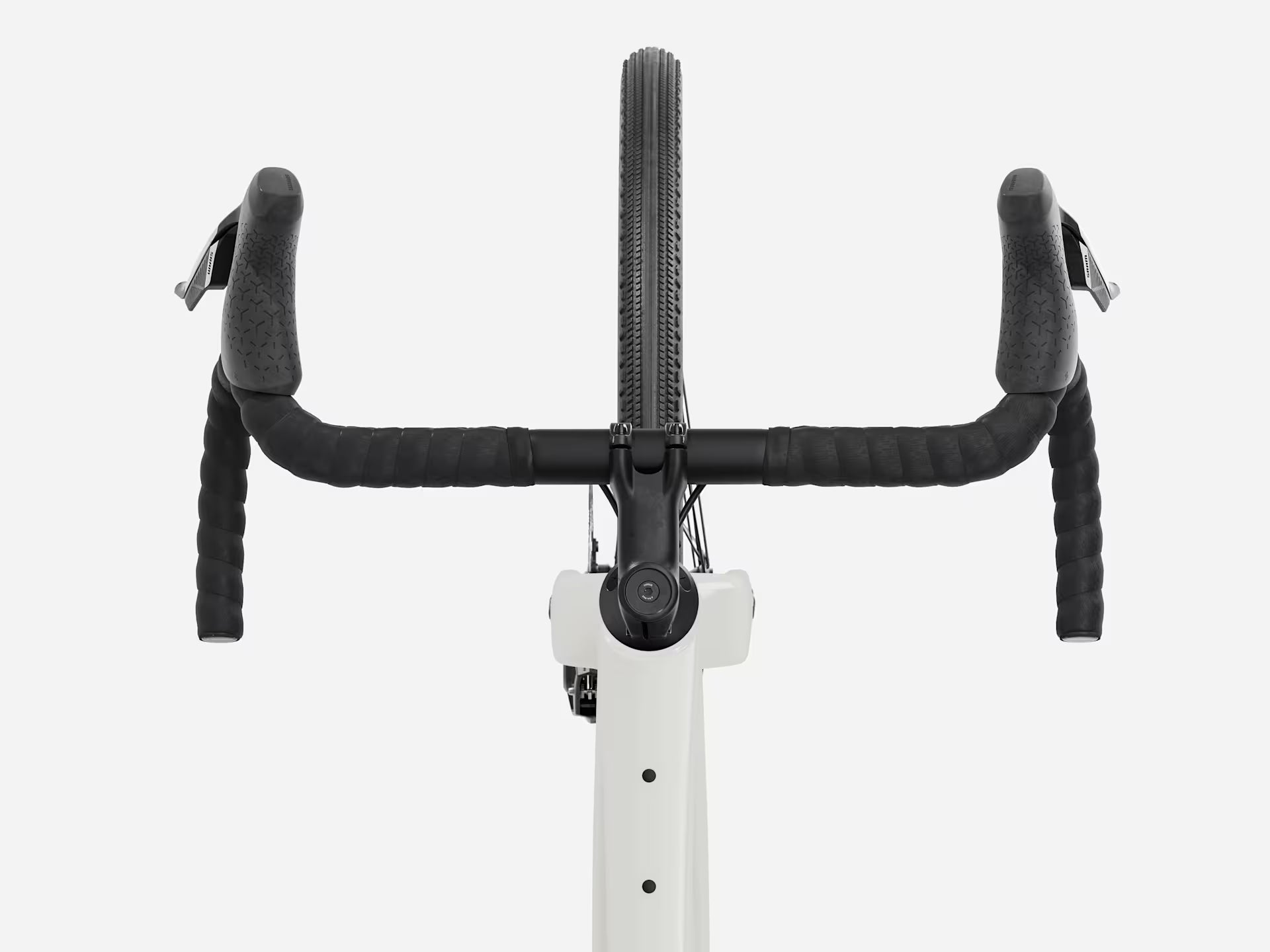

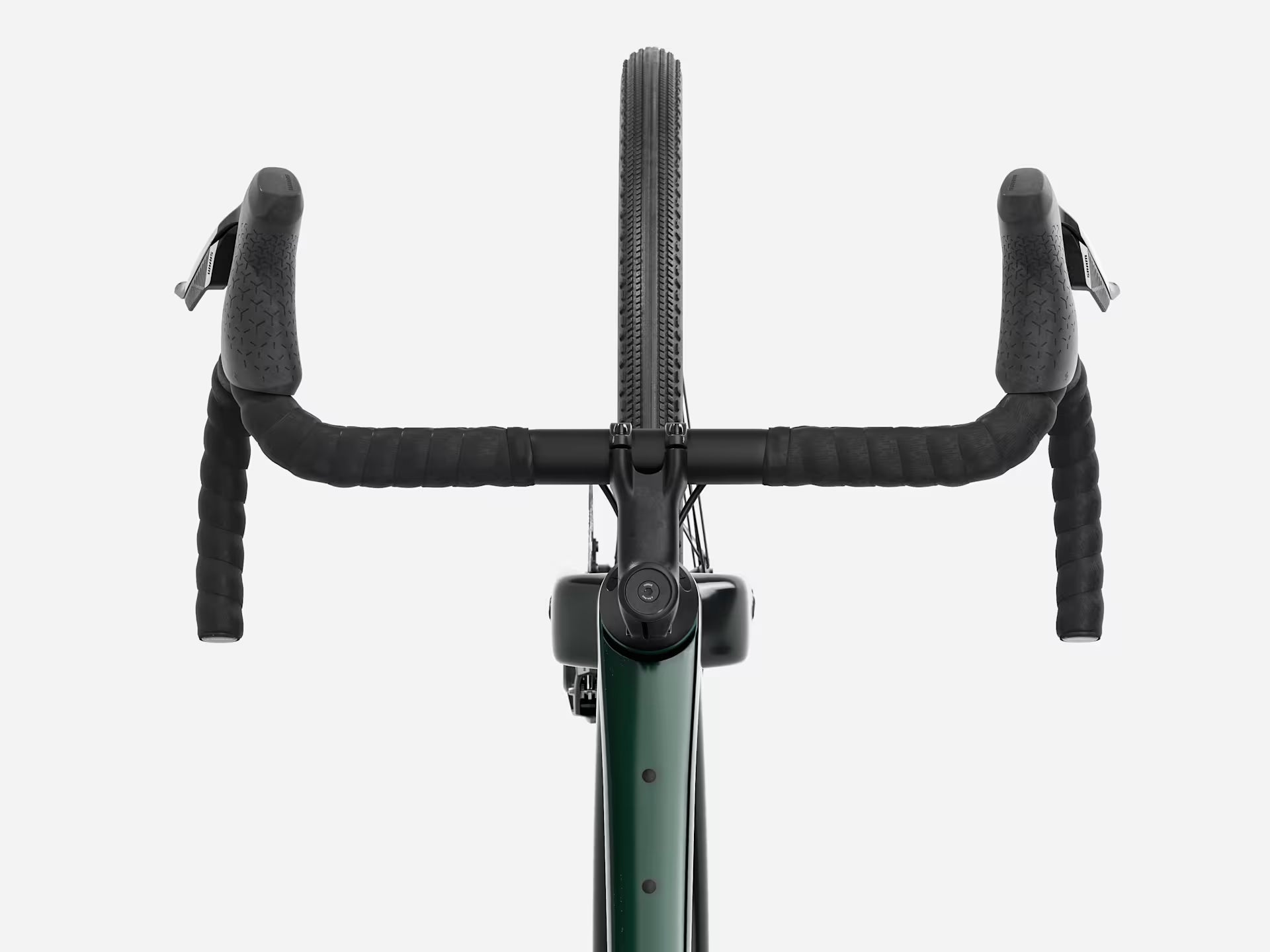

*Handlebar: Size: XS, S
Bontrager Elite Gravel, alloy, 40cm width

Size: M, ML
Bontrager Elite Gravel, alloy, 42cm width

Size: L
Bontrager Elite Gravel, alloy, 44cm width

Size: XL
Bontrager Elite Gravel, alloy, 46cm width
Handlebar tape: Bontrager Supertack Perf tape
*Stem: Size: XS

Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 70mm length

Size: S, M

Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 80mm length

Size: ML, L

Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 90mm length

Size: XL

Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 100mm length
Brake rotor: SRAM Paceline, rounded, centerlock, 160mm
Rotor size: Max brake rotor sizes: 180mm front & rear
